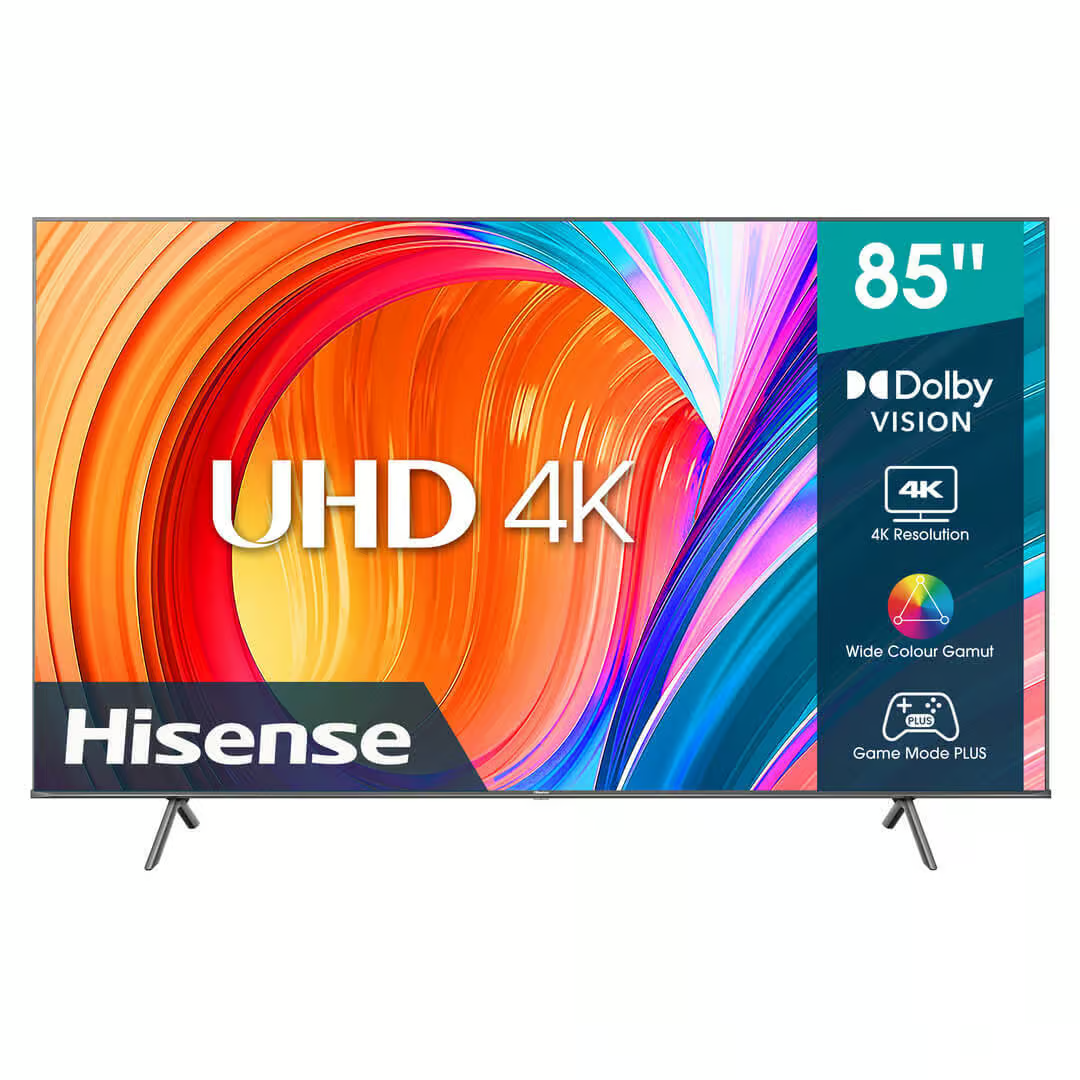

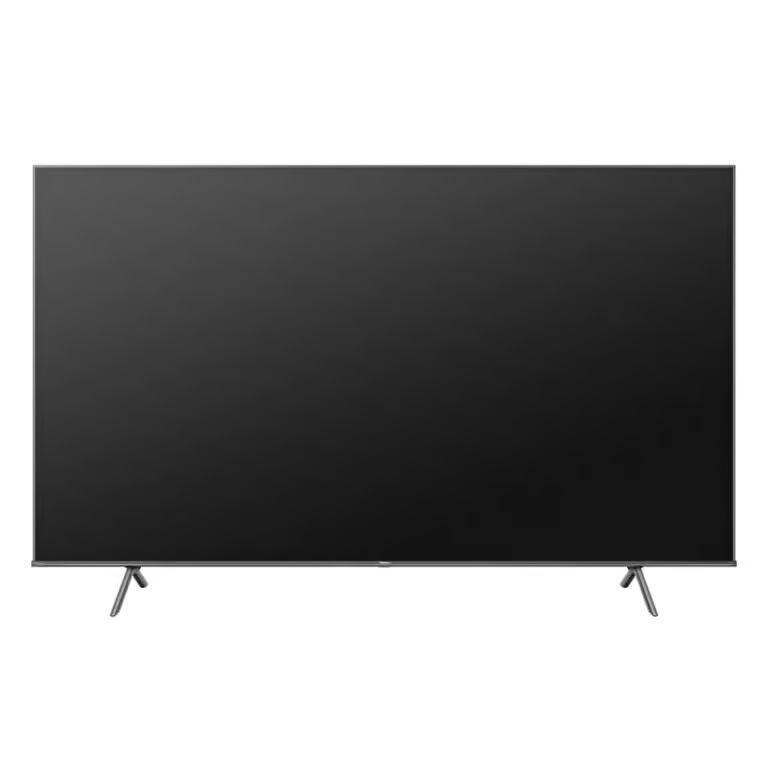

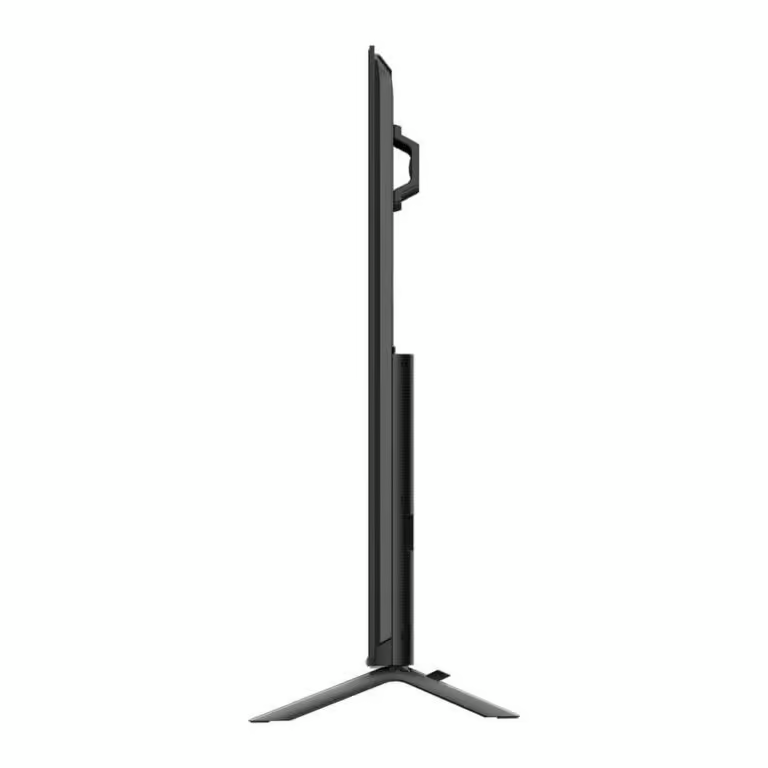

Hisense UHD 4K VIDAA Smart TV (LED85A7K)

Product

Factory model

75A65GAVT

Factory

Qingdao

Description

189cm (75" ) Direct LED Television

Document

Specifications form version

HA220120

Circulation

Restricted, internal use only

Status

Confirmed

Revision number

1

Date

1/27/2022

Issued by

Al

Image display

Panel manufacturer

Hisense

Panel model

LCM:HD750Y3U72-L7, Open Cell:HV750QUB-E7D

Active display area, horizontal dimension

1649.664mm

Active display area, vertical dimension

927.936mm

Screen size (rounded to nearest integer)

189cm

Screen size (rounded to nearest integer)

927.936mm

Display technology

LCD/ LED lit

Backlight source

Direct LED

Resolution (Horiz x Vert)

3840X2160

Screen curvature radius

-

Colour depth

8bit+FRC

Image refresh frequency

120Hz

Smooth motion rate

240

3D image

-

Typical brightness of white

400cd/m2

Native contrast ratio

1400 : 1

Viewing Angle (Horiz / Vert)

178/ 178Degrees

Quantum dot

Yes

Wide colour gamut

Yes

KSF phosphor

Yes

UHD Premium

No

Response Time

8ms

Connectivity

RF- Radio frequency input

1

AV input

1

AV output

0

USB interface type 3.0 (Qty / List….)

1

USB interface type 2.0 (Qty / List ….)

1

Optical digital audio output (SPDIF)

1

Earphone jack

1

HDMI ports

HDMI inputs

4

HDMI type 8K@60Hz

No

HDMI type 4K@60Hz with HDCP version 2.2

YES

HDMI 2.1 compliant input

YES

Enhanced Audio Return Channel ( eARC)

YES

CEC- Consumer Electronics Control via HDMI

Yes

Smart TV

Ethernet port (RJ45 connector)

1

Wi-Fi protocols IEEE 802.11 {b, g, n, ac, ad, ..}

a, b, g, n, ac

Wi-Fi bands

2.4/5.0GHz

DLNA compliance

Yes

Bluetooth / BT version

Yes / 5.0

Anyview (Screen mirroring)

Yes

Catch-up TV services

Iview, SBS on Demand, 7 Plus, 9 Jumpin

(Tenplay available from Playsore)

UHD (4k) streaming

Yes

Installed Applications {List ……}

Netflix/Youtube/Prime Video……

Freeview Plus - HbbTV 2.0

Yes

Web browser [Chrome | Opera | Other]

Odin

Digital TV reception

Television system (DVB-T / DVB-T2)

Yes / Yes

Video decoder (MPEG2 / MPEG 4)

Yes / Yes

AC3 Surround sound decoder

Yes

AS 4599.1 compliance

Yes

AS 4933.1 compliance

Yes

LCN- Logical channel number and DTV Service name support

Yes

Teletext / Teletext signal interruption (TAB compliant) / 16 : 9 TLTX

Yes / Yes / Yes

Subtitles

Yes

RF Signal strength indicator

Yes

RF Signal quality indicator

Yes

RF Bit error rate indicator

Yes

EPG- Electronic programming guide, 7 days for all services

Yes

Audio description (vision impairment aid)

Yes

Parental rating lock

Yes

Analogue TV reception

Colour-Sound systems in VHF band

PALSECAM, B/G, D/K, I

Colour-Sound systems in UHF band

PALSECAM, B/G, D/K, I

Stereo sound decoder {A2, Nicam, ….}

No

Teletext / Teletext signal interruption (TAB compliant) / 16 : 9 TLTX

No/ No/ No

Subtitles

Yes

Image processing

Backlight control

Yes

Light sensing

Yes

Dynamic backlight control

Yes

Frame rate control

No

Variable Refresh Rate (VRR)

Yes

FreeSync

Yes

Auto Low Latency Mode for VRR

Yes

Local dimming/ controllable zones

Yes

Zoom function settings

Automatic/ 16:9/ 4:3/ Panoramic/

Movie Zoom/ Direct

1:1 Pixel mapping

No

HDR - High Dynamic Range for luminance (DMP / Netflix / HDMI)

Yes/ YES / YES

HDR system (HDR10 / HDR10+ / Dolby Vision)

Yes/ YES / YES

HLG (Hybrid Log-Gamma) for HDR

YES

HEVC (H.265) decoder

Yes

Dual image (PIP / POP)

No/ No

Motion enhancement and compensation (MEMC)

Yes

Input lag

NO

Sound

Audio power output per channel

15Watt

Number of speakers (Tweeter / Midrange / Woofer)

0 /2 /1

Automatic volume level (AVL)

Yes

Audio equalizer

Yes

Dolby Digital

Yes

Audio enhancement -Type {SRS, BBE, SAP, DBX-TV….}

Dolby ATMOS

Lip-sync adjustment

Yes

Features

On/off timer

Yes

Power off if no signal

Yes

Sleep timer

Yes

Program lock

Yes

OSD transparency control

Yes

User interface

VIDAA U6

Software version OSD indication

Yes

Legal requirements: Disclaimer / Acceptance of Terms

Yes / Yes

Favourite channels list

Yes

Electronic point of sales (E-POS)

Yes

OTA- Over the air software updates

Yes

Voice command

Yes

Screen mirroring {Miracast, Anyview Cast, ...}

Anyview Cast

Smartphone remote control application {Rremote Now, ...}

Yes/Vidaa App(Remote Now)

Replaceable demo video for Store mode

Yes

Remote control via serial port

No

USB media player

Personal Video Recorder

Yes

Time Shift

Yes

DTV Recording (EPG scheduling / start from Standby )

Yes / Yes

DivX decoder

No

MPEG4 (H.264) / H.265 decoder

Yes / Yes

DMP- Digital media player content (Music / Video / Photos / Text)

Yes / Yes / Yes / No

DMP Auto-play

No

DMP for UHD content via USB

Yes

DMP File allocation table (FAT / FAT32 / exFAT / NTFS)

Yes / Yes / No / Yes

PVR File allocation table (FAT / FAT32 / exFAT / NTFS)

Yes / Yes / No / Yes

Hotel lock

Protected Hotel lock submenu (Password / fixed code)

No / Yes

Clone function for programs, sound and image settings.

Yes

Sub-menu lock, including tuning lock

Yes

Keyboard lock

Yes

Maximum volume lock

Yes

Power on volume

Yes

Power on, apply default sound/image settings

No

Power on source selection

Yes

Power on RF channel selection

Yes

Power on mode (On / Standby / Last)

Yes / Yes / Yes

Inputs access (Enable / Disable)

Yes

Hardware

Processor / Cores

MT9900AAAQPC / 4

Dual Tuner

No

Colour (Front bezel, rear, stand)

Black / Black / Black

Speakers mounted in enclosure

Yes

Mains power switch

No

Swivel base

No

Compact packaging

Yes

Supply range [Voltage / Frequency ]

100 ~ 240V，50Hz/60Hz

Standby consumption

< 0.5W

Maximum time delay Power On to sound an image

50sec

Installation

Stand area (Width / Depth)

1143×377 mm

Wall mount dimensions (Horiz x Vert)

400×300 mm

Wall mount, screw thread

M6/10 mm

VESA compliance

Yes

Detachable power cord

Yes

Power cord length

200 cm

Accessories

Remote controller (Technology / Part number )

IR /ERF3G80H(0012)

Battery (size / quantity)

AAA / 2

User manual (Available online) / Quick setup guide (Print)

1 / 1

Warranty [In User manual | In separate sheet]

In separate sheet

Skype camera (Qty / Part number)

-

3D glasses type [Passive | Shutter] / Link [RF | IR | BT]

-

3D glasses (Qty / Part number)

-

Dimensions

Dimensions with stand (W x H x D)

1675×1033×377 mm

Dimensions without stand (W x H x D)

1675×960×78 mm

Carton box dimensions (W x H x D)

1865×179×1146 mm

Net weight (with stand / without stand)

28.7Kg/27.9Kg

Gross weight

41.3 Kg

Container load (20ft / 40ft / 40ft HC)

80/164/164

Licensing and certification

EMC- Electromagnetic Compatibility

Yes

CB- Electrical safety

Yes

HDMI

Yes (Hisense internal test)

Dolby Digital

Yes

MEPS- Test report

Yes

ROHS

No

Electrical safety conformity for Australia

Yes

Documentation

Panel specifications

Yes

Initial specifications (input form)

Yes

Confirmed product specifications

Yes

List of DMP formats for audio and video

Yes (QSG)

Documentation

CB report and certificate

Yes

EMC report and certificate

Yes

Power cord, plug and connector Australian safety approval

Yes
