• LPU Technology
• Projection size 80″ to 150″
• Ultra Short Throw
• 4k AI Upscaling

• Series PX

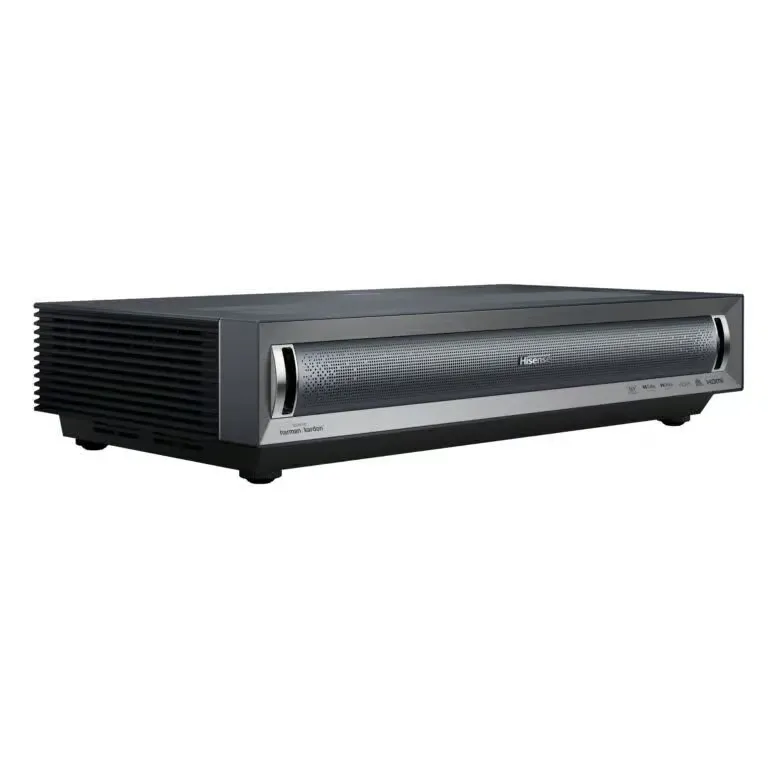

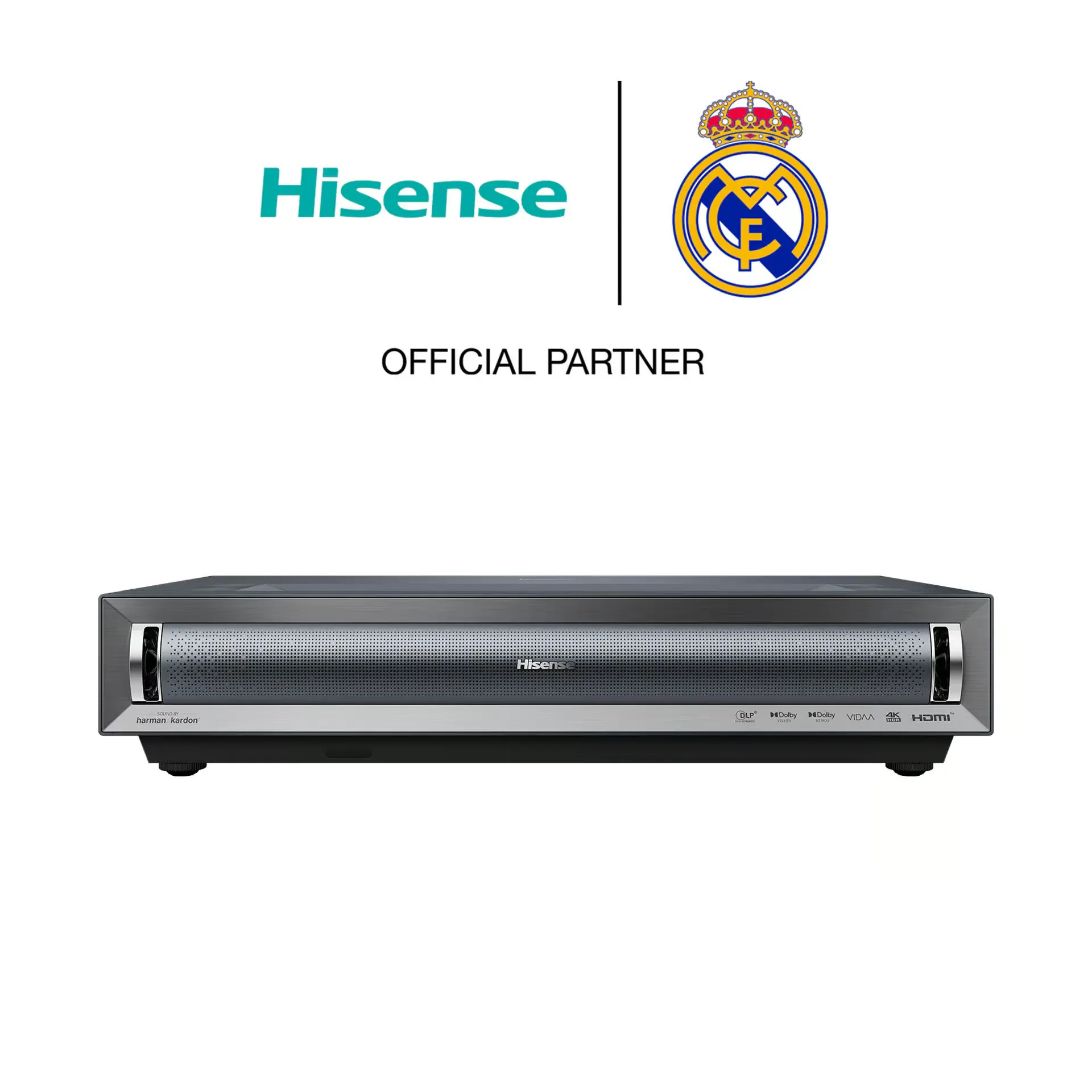

• Retail Model PX3 Ultra-short throw laser projector
• Features
• Resolution 4K
• 4K Upscaling
• Dolby Vision
• Sound Technology Dolby Atmos
• ID Color Black, Gray
• Basic Information
• ID Color Black, Gray
• Resolution 4K
• Aspect Ratio 16:9
• Display Technology DLP
• Light Source Laser Source
• Light Source Blue+Green+Red Laser
• DMD 0.47” PICO Native 2K
• Throw Ratio 0.22
• Audible Noise 32dB
• Display Surface Flat
• Lens shift No
• Focus Focus adjustment
• Zoom (Optical or Digital) No
• Lens cover No
• Light source lifetime 25,000 hours (Luminance drop 50%)
• Eye Protection (Automaitic turn off laser when people close by) Yes
• Resistant (IP Level) NA
• Kensington Security Slot Yes
• RoHS Compliant Yes
• Recyclable Product Yes
• Speakers / Type Built-in
• Audio Power Output No
• Display Size 80“-150”
• Screen NA
• Screen Type NA
• Category 4K Smart Laser TV
• UI VIDAA U7.5
• Technical Details
• Luminance ( full field, in Lumens) 2800lm
• Brightness NA
• Luminance (minimum, in Lumens) TBD
• Static Contrast 3000：1 （具体基于样机实测数据）
• Dynamic Contrast Ratio 200,0000：1
• Number of Colors 1.07B
• Resolution 3840*2160
• 4K Upscaling Yes
• 10 bit Colorimetry Yes
• HDR Compatible Yes
• HDR10 Yes
• HLG Yes
• HDR10+ decoding Yes
• Dolby Vision Yes
• HDMI-ARC Support Yes
• HDMI-CEC Support Yes
• MHL Support No
• Anyview Cast (Miracast) Yes
• Network Streaming (DLNA) Yes
• Wireless Digital Audio (Bluetooth) Yes
• FILMMAKER MODE Yes
• Wide Color Gamut Typical 110% BT2020（±5%）
• 3D No
• Processor MT9618
• Upscaling Ultra HD Yes
• MEMC Yes
• Frame rate 60Hz
• 1080P/240Hz 1080P/120Hz Yes
• Motion rate 120
• Decoder HEVC (H.265),VP9,H.264,MPEG4, MPEG2,VC1,MVC
• Input Lag in Game Mode ≤60ms
• 3D Digital Comb Filter Yes
• MPEG noise reduction Yes
• Mosquito noise reduction Yes
• DLP upgrade via OTA No
• Control 4 Yes
• Sound
• Sound output power 2*15W+2*10W
• Subwoofer NA
• Sound Technology Dolby Atmos
• WiSa Ready Yes
• NICAM / A2 Stereo NICAM Stereo
• User Equalizer Yes (Advanced Parametric Equalizer,the compensation of frequency characteristics based on input signal level to fit the acoustic characteristics of human ears)
• Sound - Special Dolby Audio(MS12) Dolby Atmos
• AC-4 Yes
• MPEG-H No
• Convenience
• Media Player Yes (Video, Audio, Picture)
• Multi-Language OSD English Français Deutsch Italiano Español Português Svenska Dansk Suomi Norsk Čeština Slovenčina Polski Magyar Български Türkçe 中文 Русский O'zbekiston العربية हिंदी Arabic Hindi Latvija Eesti Lietuva
• Hotel TV Yes
• User Interface VIDAA U7.5
• Internet
• Important Apps (all countries) Netflix, YouTube, Prime Video (Amazon),Airplay
• Country-specific apps Freeview Play (UK), Maxdome (GER), Timvision(IT),ChiliTV(IT),BBC iPlayer(UK),Mitele(SPAIN),RTVe(SPAIN),IVI(RUS),OKKO(RUS),MEGOGO(UKR),Rutube(RUS),Channel One(RUS);Rai Play(IT);RMC (SFR sports)(FRANCE),OLL TV(UKR),Divan.TV(UKR),CDA.PL(POL) Foxtel(Au)
• Web browser Odin
• HbbTV V2.0.3
• MHEG support Yes,(but only if Certification requires,e.g. Ziggo)
• Smartphone app VIDAA APP
• Reception and TV Features
• Digital and Analog Tuner DVB-T2/T/C/S2/S
• Twintuner No
• LCN Support Yes (Depending on location and operator)
• Teletext Support Yes
• EPG 7 days forward EPG, 7 days backwards EPG (UK Only)
• Parental Control Yes
• PVR Yes(except russia)
• Time Shift Yes(except russia)
• Channel sorting Built-in and exportable for PC edit (ChSort)
• Favorite channel list 4
• Connectivity
• Common Interface (CI+) Yes(V1.4 & 2.0)
• HDMI1 HDMI2.1
• HDMI2 HDMI2.1,eARC
• HDMI3 HDMI2.0
• USB (2.0) 1
• USB (3.0) 1
• S/PDIF Output 1
• RCA L/R Output (Analog) 0
• Headphone Output 1
• RF Tuner 2
• Composite (AV) Input 0
• Component YPb(Cb)/Pr(Cr) Input NA
• SCART NA
• VGA Input 0
• VGA L/R Audio(mini jack) 0
• Audio (L/R) Input 0
• Subwoofer NA
• Ethernet RJ45 port Yes
• Wireless LAN adapter Support Yes
• WiFi technolegy 802.11ac, dual-band (2.4G and 5G)
• Bluetooth Support and profiles A2DP & AVRCP
• Indicator effects Standby:On On service:Off Power on/off:flashing
• RS232 No
• service port 1
• Eco & Power supply
• Power Supply 120V-240V
• Energy Efficiency Class NA
• Standby Consumption ≤0.5W
• Power off NA
• Power Consumption (Nameplate) 250W
• Annual consumption (Nameplate) NA
• Power Consumption (Energy Rating Label) NA
• Annual consumption (Energy Rating Label) NA
• Luminance Ratio NA
• Mercury content 0 mg
• Lead content Yes -This television contains lead only in certain parts or components,in accordance with existing exemption clauses under the RoHS Directive.
• Weight & Dimensions
• Weight incl. Packaging TBD
• Product weight incl. Stand TBD
• Product weight excl. Stand 9.2kg
• Weight of carton box TBD
• Weight of plastic foam in package material BC瓦双瓦楞纸板
• Weight of plastic in package material TBD
• Weight of metal in package material TBD
• Package (Horizontal/Vertical) TBD
• Packaging Dimension (LxDxH) 663×403×298mm
• Product Dimension (LxDxH) 550×296×120mm
• EAN TBD
• Accessories
• Stand Material / Color NA(no stand)
• Stand (LxW) NA(no stand)
• VESA Wall Mount Compatible NA(not compatable)
• Remote control (Number of Keys / Model number) 41/ERF6A66(EU),41/ERF6P64H(UK),41/ERF6Q64H(RU),41/ERF6N64H(AU),ERF3C96H(0011)(MEA),27/ERF3H90H(AP),34/ERF3J86H(SA)
• Remote Batteries AAAx2
• User Manual YES
• Quick start page YES
• Power cable YES
• Adapter No
• Units of packaging material carton纸箱1pc+pad 衬垫2pc+TV’s package bag整机袋1pc+accessary bag附件袋2pc+glove package bag 手套包装袋1pc+Cleaning Kit carton清洁套装包装盒1pc+remote control package bag遥控器包装袋1pc+Wrench package bag扳手包装袋1pc
• Units of packaging material (0.1g < unit <= 0.5g) NA
• Units of packaging material (unit > 0.5g) carton纸箱1pc+pad 衬垫2pc+TV’s package bag整机袋1pc+accessary bag附件袋2pc+glove package bag 手套包装袋1pc+Cleaning Kit carton清洁套装包装盒1pc+remote control package bag遥控器包装袋1pc+Wrench package bag扳手包装袋1pc
• Packaging
• ISTA 6-AMAZON.com-SIOC Yes
• Weight of packaging
• Weight of packaging -paper, cardboard TBD
• Weight of packaging- EPS TBD
• Weight of packaging- foil PE TBD
• Weight of packaging- PVC TBD
• Weight of packaging- plastic- other TBD
• Weight of packaging- wood TBD
• Weight of packaging- metal TBD
• Weight of packaging -paper TBD
• Logistics & Warranty
• Container Loading(40HQC) TBD
• DMP formats
• Container Format AVI,MP4,MKV,TS,FLV OGM
• Video .AVI,.WMV,.MP4,.MOV,.3GP,.MKV,.MPG,.MPEG,.VOB,.FLV,.OGM,
• Audio .wma,.wmv,.mp4,.FLAC,.MP2,.MP3 music(mp3 aac wma wav)
• Picture .jpeg,.bmp,.PNG,.GIF
• 3rd partyRegisterModelName PX3
• CE Yes
• CB Yes
• EMC 测试 Yes
• HDMI 认证 No
• 能源之星 No
• RoHS Yes
• Divx No
• CI+ Yes
• Dolby audio Yes
• Amazon Yes
• Netflix Yes
• YouTube Yes
• FVP Yes
• Dolby vision Yes
• AirPlay Yes

24 Months
