Specification

Value

Commercial model

75Q6Q

Series

Q6Q

Description

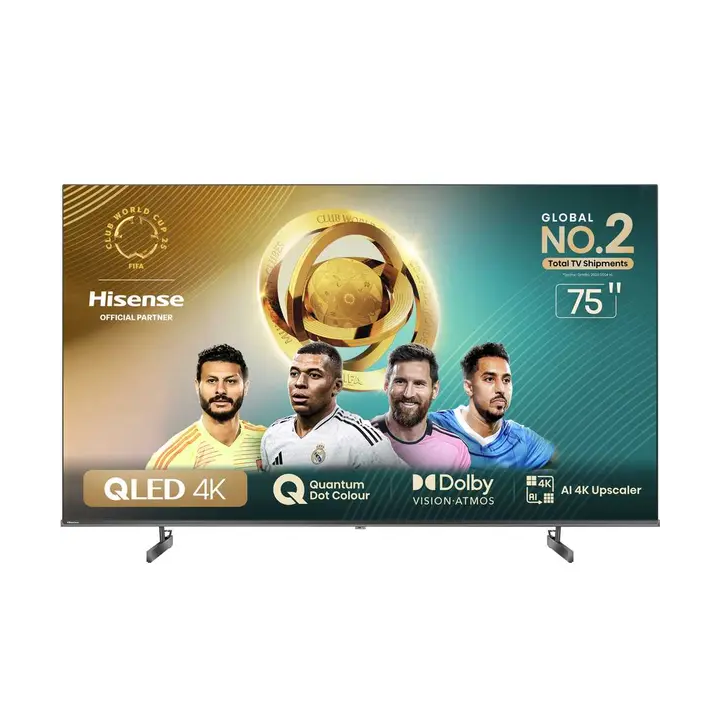

189cm (75″ ) Direct LED Television

Specification

Value

Resolution (Horiz x Vert)

3840×2160

Colour depth

8bit+FRC

Image refresh frequency

60

Smooth motion rate

120

Typical brightness of white

350 cd/m2

Native contrast ratio

1300 : 1

Viewing Angle (Horiz / Vert)

178/ 178

Quantum Dot

Yes

Wide Colour Gamut

Yes

Response Time

8m/s

Specification

Value

RF- Radio frequency input

1

AV input

1

USB interface type 2.0 (Qty / List .)

2/ USB1,USB2

Optical digital audio output (SPDIF)

1

Earphone Jack

1

Specification

Value

HDMI inputs

3

HDMI type 4K@60Hz with HDCP version 2.2

Yes

Enhanced Audio Return Channel ( eARC)

Yes / HDMI 3

CEC- Consumer Electronics Control via HDMI

Yes

Specification

Value

Ethernet port (RJ45 connector)

1

Wi-Fi protocols IEEE 802.11

a, b, g, n, ac

Wi-Fi bands

2.4/5.0 Ghz

DLNA compliance

Yes

Bluetooth / BT version

Yes / 5.0

Anyview (Screen mirroring)

Yes

BVOD services

Iview, SBS on Demand, 9Now,Tenplay

Installed Applications

Netflix/Youtube/Disney+/Stan/AppleTV+/Prime Video

Freeview Plus - HbbTV 2.0

Yes

Web browser

Odin

Specification

Value

Backlight Control

YES

Dynamic backlight control

YES

Variable Refresh Rate (VRR)

Yes

Auto Low Latency Mode for VRR

Yes

Zoom function settings

Auto/ 16:9/ 4:3/ Movie Zoom

HDR - High Dynamic Range for luminance (DMP / Netflix / HDMI)

Yes/ YES / YES

HDR system (HDR10 / HDR10+ / Dolby Vision)

Yes/ YES / YES

HLG (Hybrid Log-Gamma) for HDR

Yes

HEVC (H.265) Decoder

Yes

Motion enhancement and compensation (MEMC)

Yes

Picture Mode

standar,Cinema Day,Cinema Night,Dynamic,Sports

Specification

Value

Audio power output per channel

15W

Dolby Digital

Yes

Audio enhancement -Type

Dolby ATMOS

Lip-sync Adjustment

Yes

Sound Mode

Stand,Theatre,Music,Speech,Late Night,Sports

Specification

Value

On/off timer

Yes

Power off if no signal

Yes

Sleep timer

Yes

Program lock

Yes

OSD transparency control

Yes

Voice command

Yes

Screen mirroring

Airplay,Miracast,DLNA,Anyview Cast

Specification

Value

Time Shift

Yes

DTV Recording (EPG scheduling / start from Standby )

Yes / Yes

MPEG4 (H.264) / H.265 decoder

Yes / Yes

Specification

Value

Clone function for programs, sound and image settings

Yes

Sub-menu lock, including tuning lock

Yes

Keyboard lock

Yes

Maximum volume lock

Yes

Power on volume

Yes

Power on source selection

Yes

Power on RF channel selection

Yes

Power on mode (On / Standby / Last)

Yes / Yes / Yes

Inputs access (Enable / Disable)

Yes

Specification

Value

Supply range [Voltage / Frequency ]

100 ~ 240V，50Hz/60Hz

Standby consumption

< 0.5W

Specification

Value

Stand area (Width / Depth) mm

1314×360

Wall mount dimensions (Horiz x Vert) mm

400×300

Wall mount, screw thread

M6

Specification

Value

Dimensions with stand (W x H x D) mm

1676×1004×360

Dimensions without stand (W x H x D) mm

1676×966×87

Carton box dimensions (W x H x D) mm

1865×188×1146

Net weight (with stand / without stand) Kg

22.2/22.5

Specification

Value

TV

1

User Manual

1

Remote

1

AAA Batteries

2
