Commercial model

70A6K

Factory model

70A51HXVT

Factory

Qingdao

Description

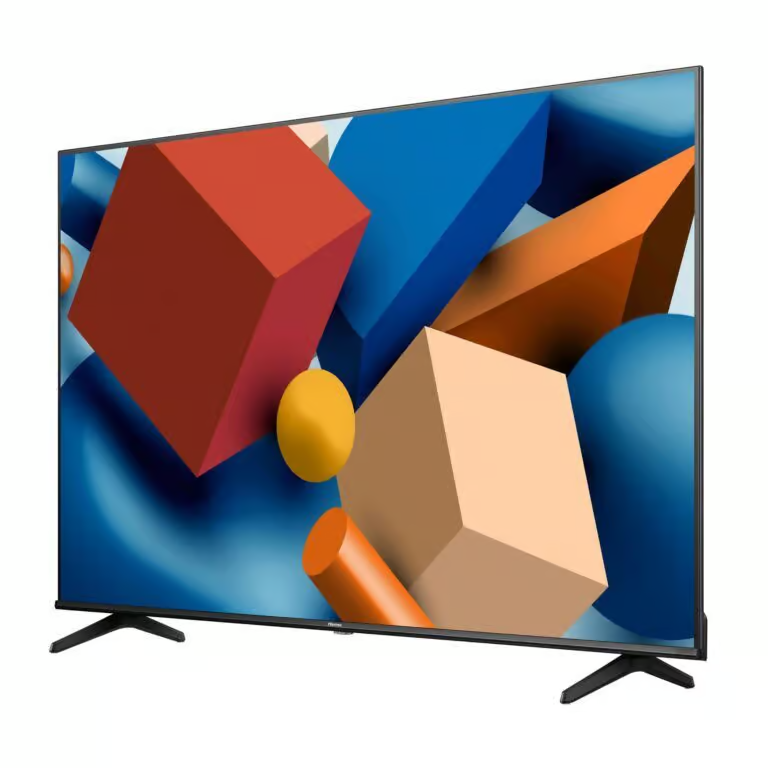

177cm (70" ) Direct LED Television

Document

Specifications form version

HA230216

Circulation

Restricted, internal use only

Status

Confirmed

Revision number

1

Date

2023/02/16

Issued by

Al

Image display

Panel manufacturer

Hisense

Panel model

HD700X1U92-TABY

Active display area, horizontal dimension

1549,44

Active display area, vertical dimension

846,72

Screen size (rounded to nearest integer)

177

Screen size (rounded to nearest integer)

70

Display technology

LCD/ LED lit

Backlight source

Direct LED

Resolution (Horiz x Vert)

3840X2160

Screen curvature radius

-

Colour depth

8bit

Image refresh frequency

60

Smooth motion rate

60

3D image

-

Typical brightness of white

300

Native contrast ratio

5000：1

Viewing Angle (Horiz / Vert)

178/ 178

Quantum dot

No

Wide colour gamut

No

KSF phosphor

No

UHD Premium

No

Response Time

8

Connectivity

RF- Radio frequency input

1

AV input

1

AV output

0

USB interface type 3.0 (Qty / List….)

0

USB interface type 2.0 (Qty / List ….)

2/ USB1, USB 2

Optical digital audio output (SPDIF)

1

Earphone jack

1

HDMI ports

HDMI inputs

3

HDMI type 8K@60Hz

No

HDMI type 4K@60Hz with HDCP version 2.2

3*HDMI2.0 (ALLM, VRR(48-60Hz))

HDMI 2.1 compliant input

NO

Enhanced Audio Return Channel ( eARC)

Yes

CEC- Consumer Electronics Control via HDMI

Yes

Smart TV

Ethernet port (RJ45 connector)

1

Wi-Fi protocols IEEE 802.11 {b, g, n, ac, ad, ..}

a, b, g, n, ac

Wi-Fi bands

2.4/5.0

DLNA compliance

Yes

Bluetooth / BT version

Yes / 5.0

Anyview (Screen mirroring)

Yes

BVOD services (Iview, SBS on Demand, 9Now, 7Plus, Tenplay)

Iview, SBS on Demand, 9Now

Installed Applications {List ……}

Netflix/Youtube/Prime Video……

Freeview Plus - HbbTV 2.0

Yes

Web browser [Chrome | Opera | Other]

Odin

Digital TV reception

Digital broadcating (DVB-T / DVB-T2)

Yes / Yes

Video decoder (MPEG2 / MPEG 4)

Yes / Yes

LCN- Logical channel number and DTV Service name support

Yes

Teletext / Teletext signal interruption (TAB compliant) / 16 : 9 TLTX

Yes / Yes / Yes

Subtitles

Yes

EPG- Electronic programming guide, 7 days for all services

Yes

Audio description (vision impairment aid)

Yes

Parental rating lock

Yes

Analog Tuner

Yes

Image processing

Backlight control

Yes

Light sensing

No

Dynamic backlight control

No

Frame rate control

No

Variable Refresh Rate (VRR)

Yes

FreeSync

No

Auto Low Latency Mode for VRR

Yes

Local dimming/ controllable zones

No

Zoom function settings

Automatic/ 16:9/ 4:3/ Panoramic/

Movie Zoom/ Direct

HDR - High Dynamic Range for luminance (DMP / Netflix / HDMI)

Yes / Yes / Yes

HDR system (HDR10 / HDR10+ / Dolby Vision)

No/ No / YES

HLG (Hybrid Log-Gamma) for HDR

YES

HEVC (H.265) decoder

Yes

Motion enhancement and compensation (MEMC)

Yes

Picture mode

Standard,Cinema Day,Cinema Night,Dynamic,Sports

Sound

Audio power output per channel

15

Number of speakers (Tweeter / Midrange / Woofer)

0/2 /0

Automatic volume level (AVL)

Yes

Audio equalizer

Yes

Dolby Digital

Yes

Audio enhancement -Type {SRS, BBE, SAP, DBX-TV….}

DTS Virtual X

Lip-sync adjustment

Yes

Sound mode

Stand,Theatre,Music,Speech,Late Night,Sports.

Features

On/off timer

Yes

Power off if no signal

Yes

Sleep timer

Yes

Program lock

Yes

OSD transparency control

Yes

User interface

VIDAA U6

Software version OSD indication

Yes

Legal requirements: Disclaimer / Acceptance of Terms

Yes / Yes

Favourite channels list

Yes

Electronic point of sales (E-POS)

Yes

OTA- Over the air software updates

Yes

Screen mirroring {Miracast, Anyview Cast, ...}

Screen Sharing

Smartphone remote control application {Rremote Now, ...}

Yes

Replaceable demo video for Store mode

Yes

Remote control via serial port

No

USB media player

Personal Video Recorder

Yes

Time Shift

Yes

DTV Recording (EPG scheduling / start from Standby )

Yes / Yes

DivX decoder

No

MPEG4 (H.264) / H.265 decoder

Yes / Yes

DMP- Digital media player content (Music / Video / Photos / Text)

Yes / Yes / Yes / No

DMP Auto-play

No

DMP for UHD content via USB

Yes

DMP File allocation table (FAT / FAT32 / exFAT / NTFS)

Yes / Yes / No / Yes

PVR File allocation table (FAT / FAT32 / exFAT / NTFS)

Yes / Yes / No / Yes

Hotel lock

Protected Hotel lock submenu (Password / fixed code)

No / Yes

Clone function for programs, sound and image settings.

Yes

Sub-menu lock, including tuning lock

Yes

Keyboard lock

Yes

Maximum volume lock

Yes

Power on volume

Yes

Power on, apply default sound/image settings

No

Power on source selection

Yes

Power on RF channel selection

Yes

Power on mode (On / Standby / Last)

Yes / Yes / Yes

Inputs access (Enable / Disable)

Yes

Hardware

Processor / Cores

MT9602R

Dual Tuner

No

Colour (Front bezel, rear, stand)

Black / Black / Black

Speakers mounted in enclosure

Yes

Mains power switch

No

Swivel base

No

Compact packaging

Yes

Supply range [Voltage / Frequency ]

100 ~ 240V，50Hz/60Hz

Standby consumption

< 0.5W

Maximum time delay Power On to sound an image

30

Installation

Stand area (Width / Depth)

1293×369

Wall mount dimensions (Horiz x Vert)

400×300

Wall mount, screw thread

M6/10

VESA compliance

Yes

Detachable power cord

Yes

Power cord length

155

Accessories

Remote controller (Technology / Part number )

IR /EN2K36H(0011)

Battery (size / quantity)

AAA / 2

User manual (Available online) / Quick setup guide (Print)

1 / 1

Warranty [In User manual | In separate sheet]

In separate sheet

Skype camera (Qty / Part number)

-

3D glasses type [Passive | Shutter] / Link [RF | IR | BT]

-

3D glasses (Qty / Part number)

-

Dimensions

Dimensions with stand (W x H x D)

1577×964×369

Dimensions without stand (W x H x D)

1577×883×84

Carton box dimensions (W x H x D)

1765×1075×211

Net weight (with stand / without stand)

21.5Kg/21Kg

Gross weight

30Kg

Container load (20ft / 40ft / 40ft HC)

70/144/144

Licensing and certification

EMC- Electromagnetic Compatibility

Yes

CB- Electrical safety

Yes

HDMI

Yes (Hisense internal test)

Dolby Digital

Yes

MEPS- Test report

Yes

ROHS

No

Electrical safety conformity for Australia

Yes

Documentation

CB report and certificate

Yes

EMC report and certificate

Yes

Power cord, plug and connector Australian safety approval

Yes
