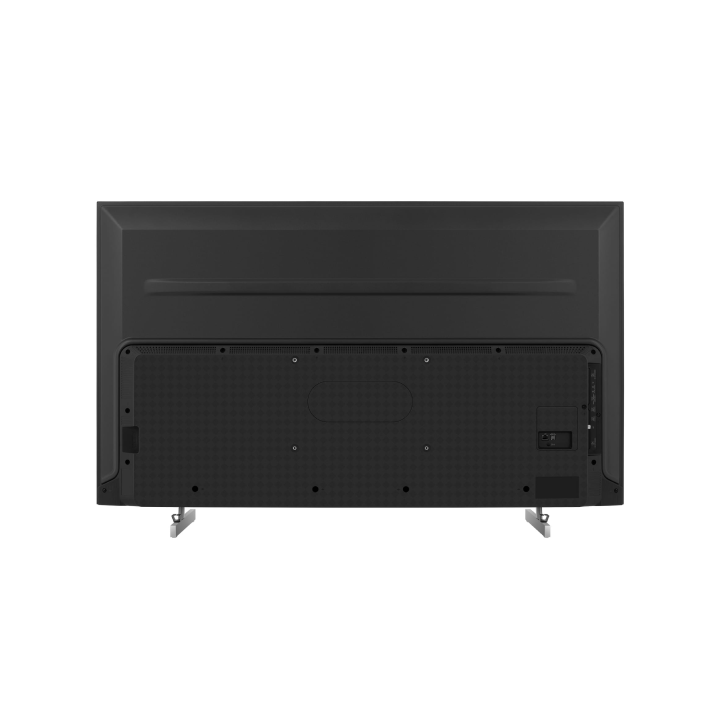

Hisense - 65" Quantum ULED 4K VIDAA Smart TV | Dolby vision | Dolby atoms- LED65U6K

Factory model

65U68GXVT

Factory

Qingdao

Description

164cm (65" ) Direct LED Television

Specifications form version

HA220120

Circulation

Restricted, internal use only

Status

Confirmed

Revision number

1

Date

27-01-22

Issued by

Al

Panel manufacturer

Hisense

Panel model

LCM:HD650Y3U75-TAL7, Open Cell :HV650QUB-F71

Active display area, horizontal dimension

1428.48

Active display area, vertical dimension

803.52

Screen size (rounded to nearest integer)

164

Screen size (rounded to nearest integer)

65

Display technology

LCD/ LED lit

Backlight source

Direct LED

Resolution (Horiz x Vert)

3840X2160

Colour depth

8bit+FRC

Image refresh frequency

60

Smooth motion rate

120

Typical brightness of white

400

Native contrast ratio

1300 : 1

Viewing Angle (Horiz / Vert)

178/ 178

Quantum dot

Yes

Wide colour gamut

Yes

KSF phosphor

Yes

UHD Premium

No

Response Time

8

RF- Radio frequency input

1

AV input

1

AV output

0

Earphone jack

1

HDMI inputs

3

HDMI type 8K@60Hz

No

HDMI type 4K@60Hz with HDCP version 2.2

HDMI 1, HDMI 2, HDMI3

HDMI 2.1 compliant input (4K@120Hz)

No

Enhanced Audio Return Channel ( eARC)

HDMI1

CEC- Consumer Electronics Control via HDMI

Yes

Ethernet port (RJ45 connector)

1

Wi-Fi protocols IEEE 802.11 {b, g, n, ac, ax, ..}

a, b, g, n, ac

Wi-Fi bands

2.4 / 5

DLNA compliance

Yes

Bluetooth / BT version

Yes / 5.0

Anyview (Screen mirroring)

Yes

Freeview Plus - HbbTV 2.0

Yes

Web browser [Chrome | Opera | Other]

Odin

Digital broadcating (DVB-T / DVB-T2)

Yes / Yes

Video decoder (MPEG2 / MPEG 4)

Yes / Yes

Subtitles

Yes

Audio description (vision impairment aid)

Yes

Parental rating lock

Yes

Analog Tuner

Yes

Backlight control

Yes

Light sensing

No

Dynamic backlight control

Yes

Frame rate control

No

Variable Refresh Rate (VRR)

Yes

FreeSync

No

Auto Low Latency Mode(ALLM)

Yes

Local dimming/ controllable zones

Yes

HLG (Hybrid Log-Gamma) for HDR

Yes

HEVC (H.265) decoder

Yes

Motion enhancement and compensation (MEMC)

Yes

Audio power output per channel

10

Number of speakers (Tweeter / Midrange / Woofer)

0 /2 /0

Automatic volume level (AVL)

Yes

Audio equalizer

Yes

Dolby Digital

Yes

Audio enhancement -Type {SRS, BBE, SAP, DBX-TV….}

Dolby ATMOS

Lip-sync adjustment

Yes

Sound mode

Stand,Theatre,Music,Speech,Late Night,Sports

On/off timer

Yes

Power off if no signal

Yes

Sleep timer

Yes

Program lock

Yes

OSD transparency control

Yes

User interface

VIDAA U6

Software version OSD indication

Yes

Favourite channels list

Yes

Electronic point of sales (E-POS)

Yes

OTA- Over the air software updates

Yes

Voice command

VIDAA voice

Replaceable demo video for Store mode

Yes

Remote control via serial port

No

Personal Video Recorder

Yes

Time Shift

Yes

Power on source selection

Yes

Power on RF channel selection

Yes

Power on mode (On / Standby / Last)

Yes / Yes / Yes

Inputs access (Enable / Disable)

No

Colour (Front bezel, rear, stand)

dark grey/ Black / dark grey

Speakers mounted in enclosure

Yes

Mains power switch

No

Swivel base

No

Compact packaging

Yes

Standby consumption

< 0.5W

Maximum time delay Power On to sound an image

30

Stand area (Width / Depth)

986×335

Wall mount dimensions (Horiz x Vert)

400×200

Wall mount, screw thread

M6/10

VESA compliance

Yes

Detachable power cord

Yes

Power cord length

155

Remote controller (Technology / Part number )

IR /EN2V36H

Battery (size / quantity)

AAA / 2

User manual (Available online) / Quick setup guide (Print)

1 / 1

Warranty [In User manual | In separate sheet]

In separate sheet

Dimensions with stand (W x H x D)

1449×901×335

Dimensions without stand (W x H x D)

1449×835×78

Carton box dimensions (W x H x D)

1610x1017x171

Net weight (with stand / without stand)

19 /18.5

Gross weight

26.4
