• Mini LED
• ULED Colour
• 144Hz Game mode Pro
• Hi View AI engine
• AI 4k Upscaler
• AI Smooth Motion
• AI Sports Mode
• Dolby vision Atmos
• Hands free voice control

Product

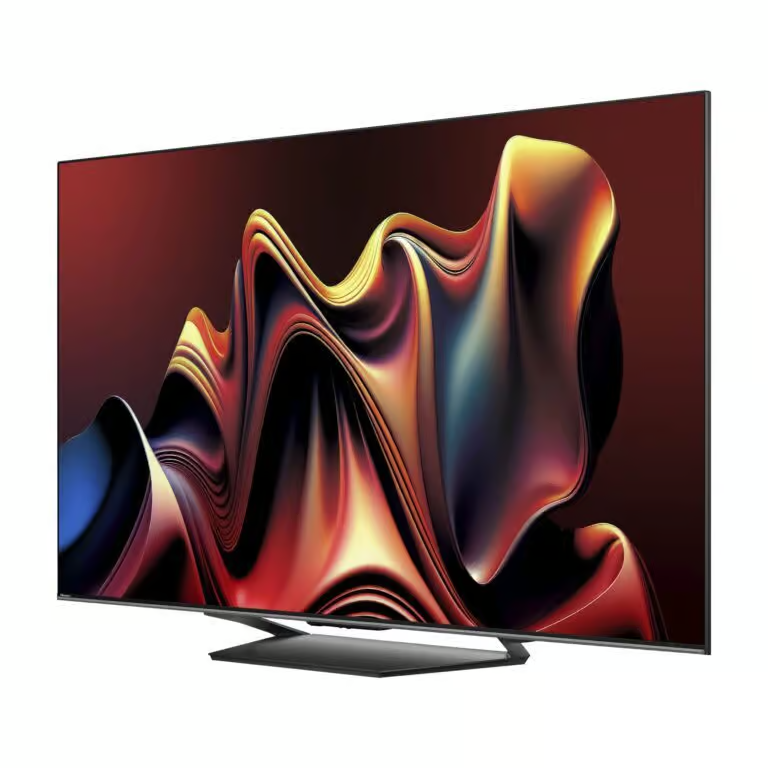

Commercial model 65U7Q

Description 164cm (65″ ) Direct LED Television

Series U7Q

Image Display

Resolution (Horiz x Vert) 3840×2160

Colour depth 8bit+FRC

Image refresh frequency 144 Hz

Smooth motion rate 240

Typical brightness of white 450nit (peaking 800nits)

Native contrast ratio 2000 : 1

Viewing Angle (Horiz / Vert) 178/ 178

Quantum Dot Yes

Wide Colour Gamut Yes

Response Time 6

Connectivity

Specification Value

RF- Radio frequency input 1

AV input 1

USB interface type 2.0 (Qty / List .) 1/ USB1, 1/ USB2

Optical digital audio output (SPDIF) 1

Earphone Jack 1

HDMI Ports

HDMI inputs 4

HDMI type 4K@60Hz with HDCP version 2.2 Yes

Enhanced Audio Return Channel ( eARC) Yes / HDMI 3

CEC- Consumer Electronics Control via HDMI Yes

Smart TV

Ethernet port (RJ45 connector) 1

Wi-Fi protocols IEEE 802.11 a, b, g, n, ac

Wi-Fi bands 2.4/5.0

DLNA compliance Yes

Bluetooth / BT version Yes / 5.0

Anyview (Screen mirroring) Yes

BVOD services Iview, SBS on Demand, 9Now，tenplay

Installed Applications Netflix/Youtube/Prime Video

Freeview Plus - HbbTV 2.0 Yes

Web browser Odin

Image Processing

Backlight Control Yes

Dynamic backlight control YES

Variable Refresh Rate (VRR) Yes

Auto Low Latency Mode for VRR Yes

Zoom function settings Auto/ 16:9/ 4:3/21:9/Movie Zoom/ Dot to Dot

HDR - High Dynamic Range for luminance (DMP / Netflix / HDMI) Yes / Yes/ Yes

HDR system (HDR10 / HDR10+ / Dolby Vision) Yes /Yes/Yes

HLG (Hybrid Log-Gamma) for HDR YES

HEVC (H.265) Decoder Yes

Motion enhancement and compensation (MEMC) Yes

Picture Mode Standard,Enhanced (ACR),FILMAKER,Cinema,Engergy Saving,Dynamic,Sports

Sound

Audio power output per channel 2*10W+20W

Dolby Digital Yes

Audio enhancement -Type Dolby ATMOS

Lip-sync Adjustment Yes

Sound Mode Standard,Enhanced(ACR),Theatre,Music,Speech,Late Night,Sports.

Features

On/off timer Yes

Power off if no signal Yes

Sleep timer Yes

Program lock Yes

OSD transparency control Yes

Voice command Yes

Screen mirroring Anyview Cast

USB Media Player

Specification Value

Time Shift Yes

DTV Recording (EPG scheduling / start from Standby ) Yes / Yes

MPEG4 (H.264) / H.265 decoder Yes / Yes

Hotel Lock

Clone function for programs, sound and image settings Yes

Sub-menu lock, including tuning lock Yes

Keyboard lock Yes

Maximum volume lock Yes

Power on volume Yes

Power on source selection Yes

Power on RF channel selection Yes

Power on mode (On / Standby / Last) Yes / Yes / Yes

Inputs access (Enable / Disable) Yes

Hardware

Supply range [Voltage / Frequency ] AC100~240V,50Hz/60Hz

Standby consumption < 0.5W

Installation

Specification Value

Stand area (Width / Depth) mm 1129*313

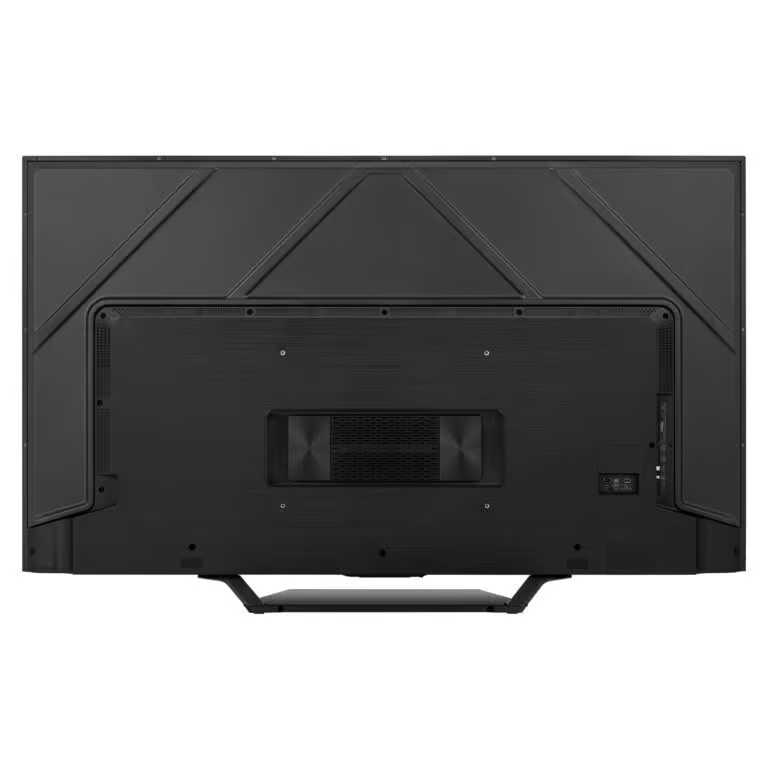

Wall mount dimensions (Horiz x Vert) mm 400*400

Wall mount, screw thread M6*10

Dimensions

Dimensions with stand (W x H x D) mm 1446 × 897 × 313

Dimensions without stand (W x H x D) mm 1446 × 839 × 68

Carton box dimensions (W x H x D) mm 1649 × 997 × 150

Net weight (with stand / without stand) Kg 20.6/20.0

Gross weight 28

36 Months
