• Bezelless Design
• Natural Colour Enhancer
• Noise Reduction
• DTS Virtual X
• Vidaa OS Smart OS
• WiFi Built in

Factory model 43A33EXVT

Factory Qingdao

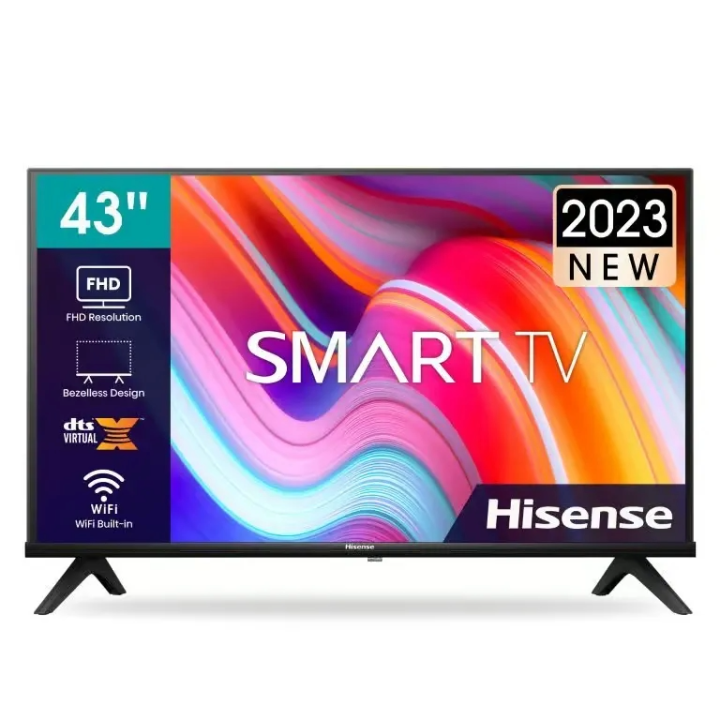

Description 108cm (43" ) Direct LED Television

Document

Specifications form version HA220120

Circulation Restricted, internal use only

Status Confirmed

Revision number 1

Date 2022/01/20

Issued by Al

Imagedisplay

Panelmanufacturer Hisense

Panelmodel LCM: JHD425H1F51-T0L1B1, Open Cell :T430HVN01.2

Activedisplay area, horizontal dimension 940,896

Activedisplay area, vertical dimension 529,254

Screensize (rounded to nearest integer) 108

Screensize (rounded to nearest integer) 43

Displaytechnology LCD/ LED lit

Backlightsource Direct LED

Resolution(Horiz x Vert) 1920*1080

Screencurvature radius -

Colourdepth 8bit

Imagerefresh frequency 60

Smoothmotion rate 60

3D image -

Typicalbrightness of white 250

Nativecontrast ratio 3000 : 1

ViewingAngle (Horiz / Vert) 178/ 178

Quantumdot No

Widecolour gamut No

KSFphosphor No

UHDPremium No

ResponseTime 8

Connectivity

RF- Radio frequency input 1

AV input 1

AV output 0

USB interface type 3.0 (Qty / List….) 0

USB interface type 2.0 (Qty / List ….) 2/ USB1, USB2

Optical digital audio output (SPDIF) 1

Earphone jack 1

HDMIports

HDMI inputs 2

HDMI type 8K@60Hz No

HDMI type 4K@60Hz with HDCP version 2.2 No

HDMI 2.1 compliant input (4K@120Hz) No

Enhanced Audio Return Channel ( eARC) Yes

CEC- Consumer Electronics Control via HDMI Yes

SmartTV

Ethernet port (RJ45 connector) 1

Wi-Fi protocols IEEE 802.11 {b, g, n, ac, ax, ..} b, g, n

Wi-Fi bands 2,4

DLNA compliance Yes

Bluetooth / BT version No / No

Anyview ( Screen Sharing) Yes

BVOD services (Iview, SBS on Demand, 9Now, 7Plus, Tenplay) Iview, SBS on Demand, 7 Plus, 9 Jumpin

(Tenplay available from Playsore)

Installed Applications {List ……} Netflix/Youtube/Prime Video/Foxtel/Stan/ABC iview/Kayo/Tubi/SBS ON DEMAND/Facebook Watch/NBA

Freeview Plus - HbbTV 2.0 Yes

Web browser [Chrome | Opera | Other] Odin

Tuner/Broadcasting

Digital broadcating (DVB-T / DVB-T2) Yes / Yes

Video decoder (MPEG2 / MPEG 4) Yes / Yes

LCN- Logical channel number and DTV Service name support Yes

Teletext / Teletext signal interruption (TAB compliant) Yes / Yes

Subtitles Yes

EPG- Electronic programming guide, 7 days for all services Yes

Audio description (vision impairment aid) Yes

Parental rating lock Yes

Analog Tuner Yes

Imageprocessing

Backlight control No

Light sensing No

Dynamic backlight control No

Frame rate control No

Variable Refresh Rate (VRR) No

FreeSync No

Auto Low Latency Mode(ALLM) No

Local dimming/ controllable zones No

Zoom function settings Auto /16:9 / 4:3 /21:9/ Movie Zoom/Dot to Dot

HDR - High Dynamic Range for luminance (DMP / Netflix / HDMI) No / No / No

HDR system (HDR10 / HDR10+ / Dolby Vision) No / No / No

HLG (Hybrid Log-Gamma) for HDR No

HEVC (H.265) decoder No

Motion enhancement and compensation (MEMC) No

Picture mode Standard， Cinema Day, Cinema Night, Dynamic, Sports

Sound

Audio power output per channel 7

Number of speakers (Tweeter / Midrange / Woofer) 2 /0 /0

Automatic volume level (AVL) Yes

Audio equalizer Yes

Dolby Digital Yes

Audio enhancement -Type {SRS, BBE, SAP, DBX-TV….} DTS Virtual X

Lip-sync adjustment Yes

Sound mode Stand，Cinema…….

Features

On/off timer Yes

Power off if no signal Yes

Sleep timer Yes

Program lock Yes

OSD transparency control Yes

User interface VIDAA U7

Software version OSD indication Yes

Legal requirements: Disclaimer / Acceptance of Terms Yes / Yes

Favourite channels list Yes

Electronic point of sales (E-POS) Yes

OTA- Over the air software updates Yes

Voice command No（ not available from RC, BUT CAN SUPPORT VOICE REMOTE BY VIDAA APP, also but only support Alexa AVG）

Screen mirroring {Miracast, Anyview Cast, ...} Screen Sharing

Smartphone remote control application {VIDAA app, ...} Yes

Replaceable demo video for Store mode Yes

Remote control via serial port No

USBmedia player

Personal Video Recorder Yes

Time Shift Yes

DTV Recording (EPG scheduling / start from Standby ) Yes / Yes

DivX decoder No

MPEG4 (H.264) / H.265 decoder Yes / Yes

DMP- Digital media player content (Music / Video / Photos / Text) Yes / Yes / Yes / No

DMP Auto-play No

DMP for UHD content via USB Yes

DMP File allocation table (FAT / FAT32 / exFAT / NTFS) Yes / Yes / No / Yes

PVR File allocation table (FAT / FAT32 / exFAT / NTFS) Yes / Yes / No / Yes

Hotellock

Protected Hotel lock submenu (Password / fixed code) No / Yes

Clone function for programs, sound and image settings. Yes

Sub-menu lock, including tuning lock Yes

Keyboard lock Yes

Maximum volume lock Yes

Power on volume Yes

Power on, apply default sound/image settings No

Power on source selection Yes

Power on RF channel selection Yes

Power on mode (On / Standby / Last) Yes / Yes / Yes

Inputs access (Enable / Disable) Yes

Hardware

Processor / Cores NT72690TBG-8C2K

Dual Tuner No

Colour (Front bezel, rear, stand) Black / Black / Black

Speakers mounted in enclosure Yes

Mains power switch No

Swivel base No

Compact packaging Yes

Supply range [Voltage / Frequency ] 100 ~ 240V / 50Hz

Standby consumption < 0.5W

Maximum time delay Power On to sound an image 30

Installation

Stand area (Width / Depth) 818×186

Wall mount dimensions (Horiz x Vert) 200X200

Wall mount, screw thread M6/ 10mm

VESA compliance Yes

Detachable power cord No

Power cord length 155

Accessories

Remote controller (Technology / Part number ) IR /EN2V36H

Battery (size / quantity) AAA / 2

User manual (Available online) / Quick setup guide (Print) 1 / 1

Warranty [In User manual | In separate sheet] In separate sheet

Skype camera (Qty / Part number) -

3D glasses type [Passive | Shutter] / Link [RF | IR | BT] -

3D glasses (Qty / Part number) -

Dimensions

Dimensions with stand (W x H x D) 965×611×186

Dimensions without stand (W x H x D) 965×563×88

Carton box dimensions (W x H x D) 1105×132×656

Net weight (with stand / without stand) 6.2 kg /6.1 kg

Gross weight 9.4 kg

Container load (20ft / 40ft / 40ft HC) 267/552/736

Licensingand certification

EMC- Electromagnetic Compatibility Yes

CB- Electrical safety Yes

HDMI Yes (Hisense internal test)

Dolby Digital Yes

MEPS- Test report Yes

ROHS No

Electrical safety conformity for Australia Yes

Documentation

CB report and certificate Yes

EMC report and certificate Yes

Power cord, plug and connector Australian safety approval Yes

36 Months
